Description
EVmax DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.
The compact product has a small size and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.
FEATURES/ADVANTAGES

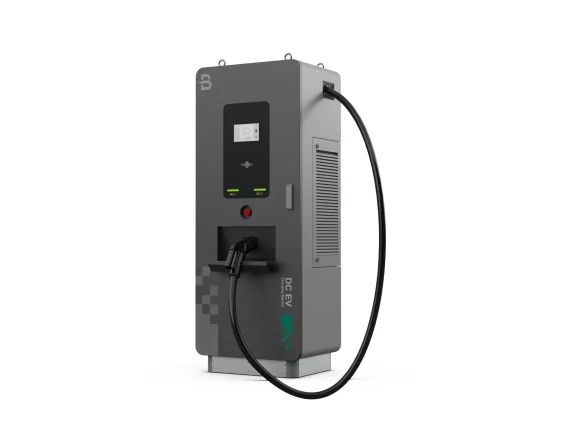

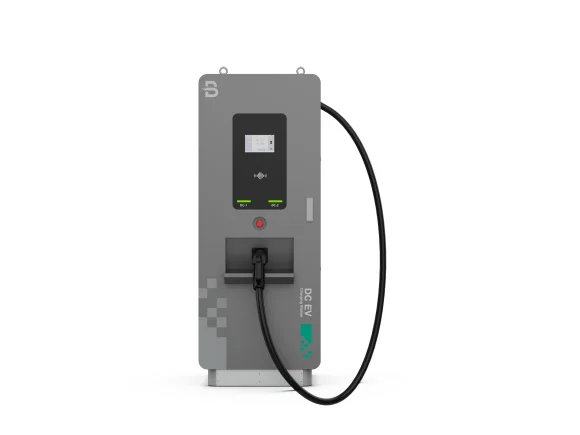

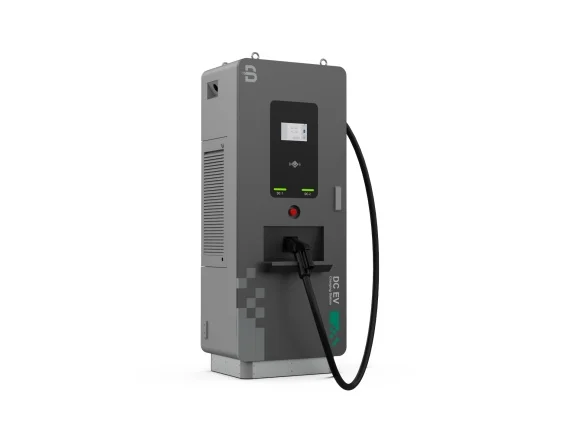

1 or 2 Guns DC
60kW – 120kW
Time and power saving
High safety
Time saving – Fast charging
Space saving – Small size fits in any space
Cost saving – More affordable without quality compromise
Power saving – High conversion efficiency and low standby power consumption
High safety – Dual protection to both manual operation and vehicles
SPECIFICATION

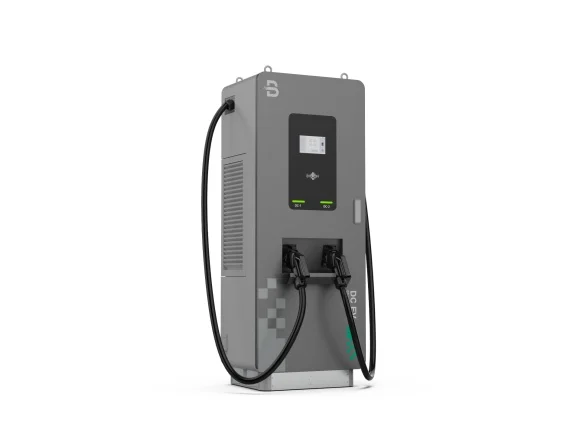

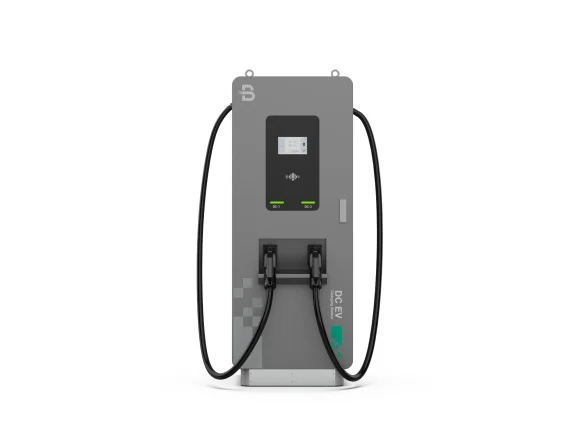

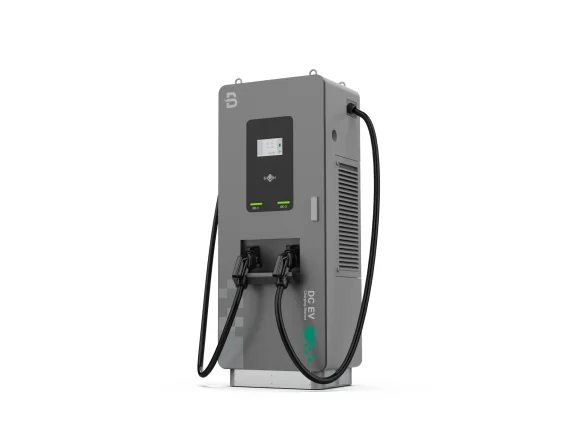

| 2 Guns Compact DC EV Charging Station BMDC | |||
| Structure Description | |||
| Models | BMDC60-D | BMDC90-D | BMDC120-D |
| Shell material | Galvanized Sheet | ||
| Dimension | 700*520*1800mm (L*W*H) | ||
| Weight | ≤320kG | ≤340kG | ≤360kG |
| Installation method | Floor-stand type | ||
| Cable routing | Bottom Inlet Wiring, Up Outlet Wiring | ||
| Total length of gun cable | 5m | ||
| Charging outlets | Double (CCS1+CCS1); Double (CCS1+CHADEMO); Double (CCS2+GBT); Double (CHADEMO+CHADEMO); Double (CCS2+CCS2) | Double (CCS2+CHADEMO); Double (CHADEMO+GBT); Double (CCS1+CCS2); Double (CCS1+GBT); Double (GBT+GBT) | Double (CCS1+NACS); Double (CCS2+NACS); Double (GBT+NACS); Double (CHADEMO+NACS); Double (NACS+NACS) |
| Connectivity authorization | RFID, App | ||
| Screen | 7 Inch LCD Screen/LED Light | ||
| Electrical Specification | |||
| AC input voltage | AC380V-415V,3P+N+PE | ||
| Input frequency | 50Hz/60Hz | ||
| Rated power | 60kW | 90kW | 120kW |
| Output voltage range | CCS1/CCS2/GBT: 150Vdc –1000Vdc; CHADEMO: 150Vdc –500Vdc | ||
| Output current | CCS1/CCS2:0~200A; GBT/NACS:0~200A; CHADEMO:0~125A |
CCS1/CCS2:0~250A; GBT/NACS:0~250A; CHADEMO:0~125A |
CCS1/CCS2:0~250A; GBT/NACS:0~250A; CHADEMO:0~125A |
| Communication | |||
| OCPP | OCPP 1.6J | ||
| Network interface | Ethernet/4G/Wi-Fi | ||
| Environment condition | |||
| Application place | Indoor/Outdoor | ||
| Working latitude | <2000m | ||
| Working temperature | -30°C~+85ºC | ||
| Working humidity | 5%~95% | ||
| Protection level | IP55, IK10 (Screen IK08) | ||
| Natural cooling | Forced-air Cooling | ||
| Warranty | 24 months warranty (extendable) | ||
