Description

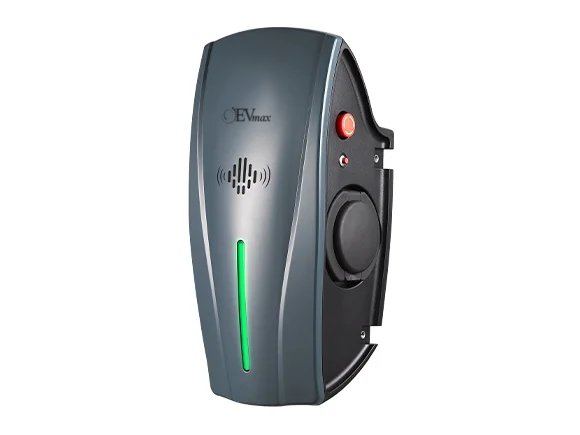

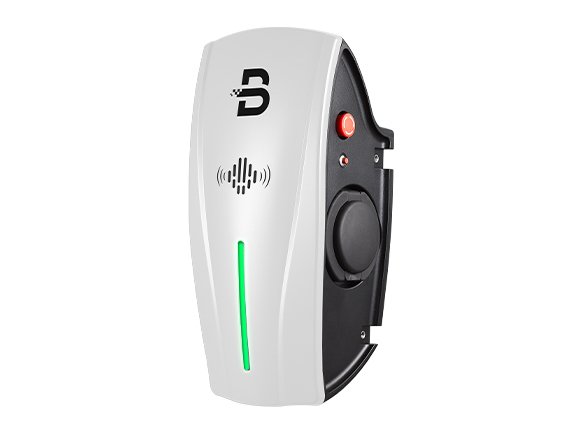

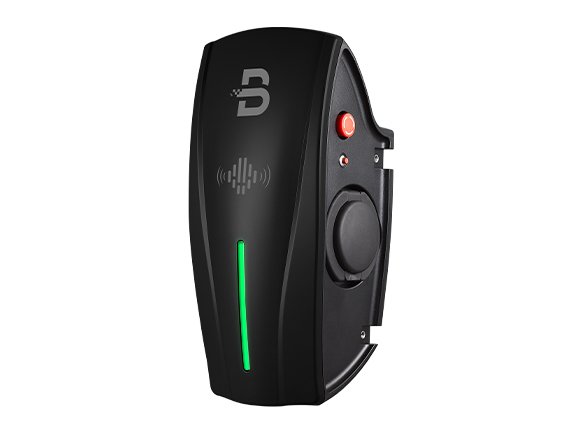

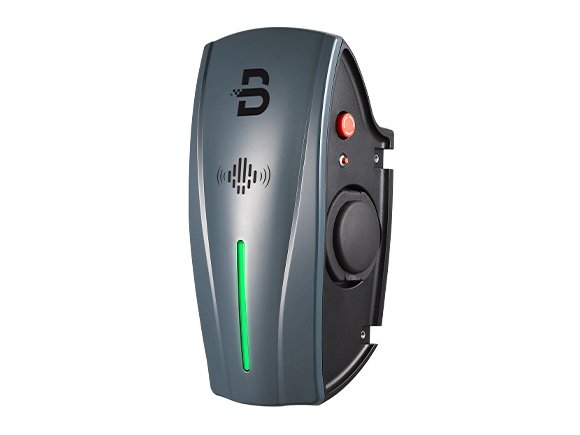

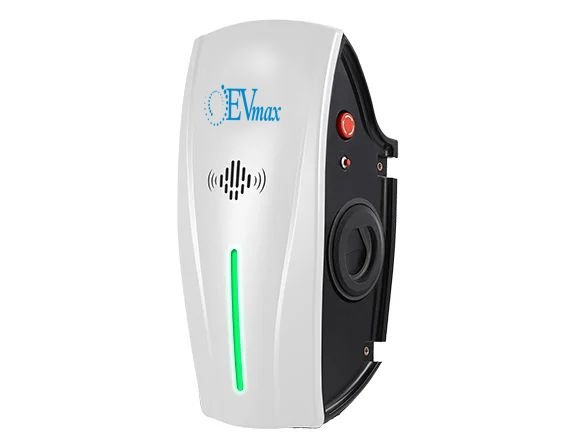

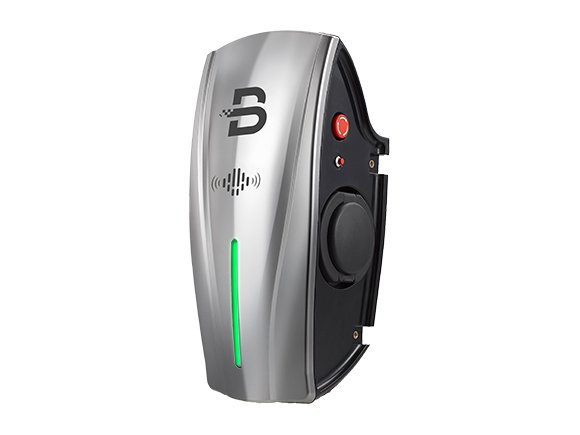

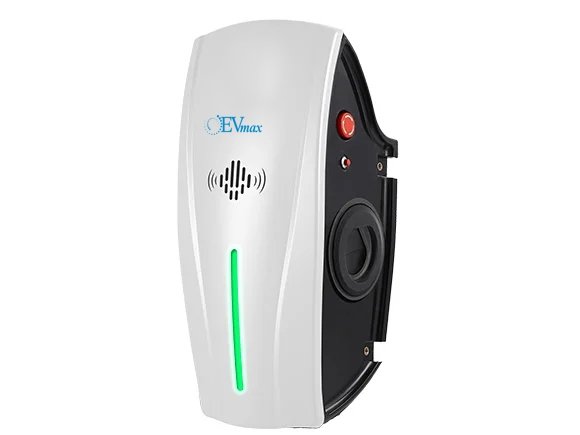

AC EV Charger with Socket

BENY Smart EV Charger with Type 2 (IEC 62196-2) Plug Socket IP55 Electric Vehicle Charging Station EV Wallbox CE Certified

Highlights :

• 1-Phase from 3.7kW to 7.4kW
• 3-Phase from 4.1kW to 22kW
• Full Protection
• Dynamic Load Balancing (optional)
• Open Charge Point Protocol (optional)
• Customize All Types of Connectors
• Smart Version with APP (optional)
• 3 Years Warranty

AC EV Charger with Socket

BENY Smart EV Charger with Type 2 (IEC 62196-2) Plug Socket IP55 Electric Vehicle Charging Station EV Wallbox CE Certified

Highlights :

• 1-Phase from 3.7kW to 7.4kW
• 3-Phase from 4.1kW to 22kW
• Full Protection
• Dynamic Load Balancing (optional)
• Open Charge Point Protocol (optional)
• Customize All Types of Connectors
• Smart Version with APP (optional)
• 3 Years Warranty

Dynamic Load Balancing Function

To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.

PEN FAULT DETECTION

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.

If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground, once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected, there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

SMART APP FOR OPTION

BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:

✔ One to one binding EV charger by resetting the password, prevent the EV charger being stolen;

✔ View charging data and status;

✔ Set up various charging configurations, charging current, DLB mode, etc.

✔ Scheduled charging;

✔ Firmware update;

FEATURES/ADVANTAGES

RFID card to charge automatically

Type 2 (IEC 62196-2) plug socket without cable

• Built-in Type B RCD for Leakage Protection
• Over Temperature Sensor
• Clip-on Grid Current Sensor
• LED Ring Status Indication
• With Emergency Stop Switch

SPECIFICATION

Electrical
Charging capacity	1.3kW-7.4kW / 4.1kW-22kW
Charge mode	Mode 3 (IEC 61851-1)
Output power	Selectable 1-phase or 3-phase, 230-400V 6 A to 32 A, 50-60 Hz
Connector options	Fixed cable type 2 plug or type 2 Socket
Fixed cable length	6m (18 ft)
Cable Entry	Rear or bottom
Protection and certification
Build-in RCD	TYPE A + DC6mA leakage sensor built-in
With Cable	IP65, IK07
Socket	IP55, IK07
Housing fire ratings	V0
Operating temperature	-25 – +55℃
Compliance	IEC61851-1, IEC61851-21-2, IEC61000-4 CE EMC EU/2014 CE Low Voltage EU/2014/35
Certificate	CE, CB, RCM
Connectivity
Authorization	Auto-start standard / RFID card option
Status indication	LED ring
Charging protocol	OCPP 1.6J optional
WLAN communication	Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing	Polycarbonate
Dimension	W169 x H380 x D151 mm
Mounting	Wall or Pole
