Description

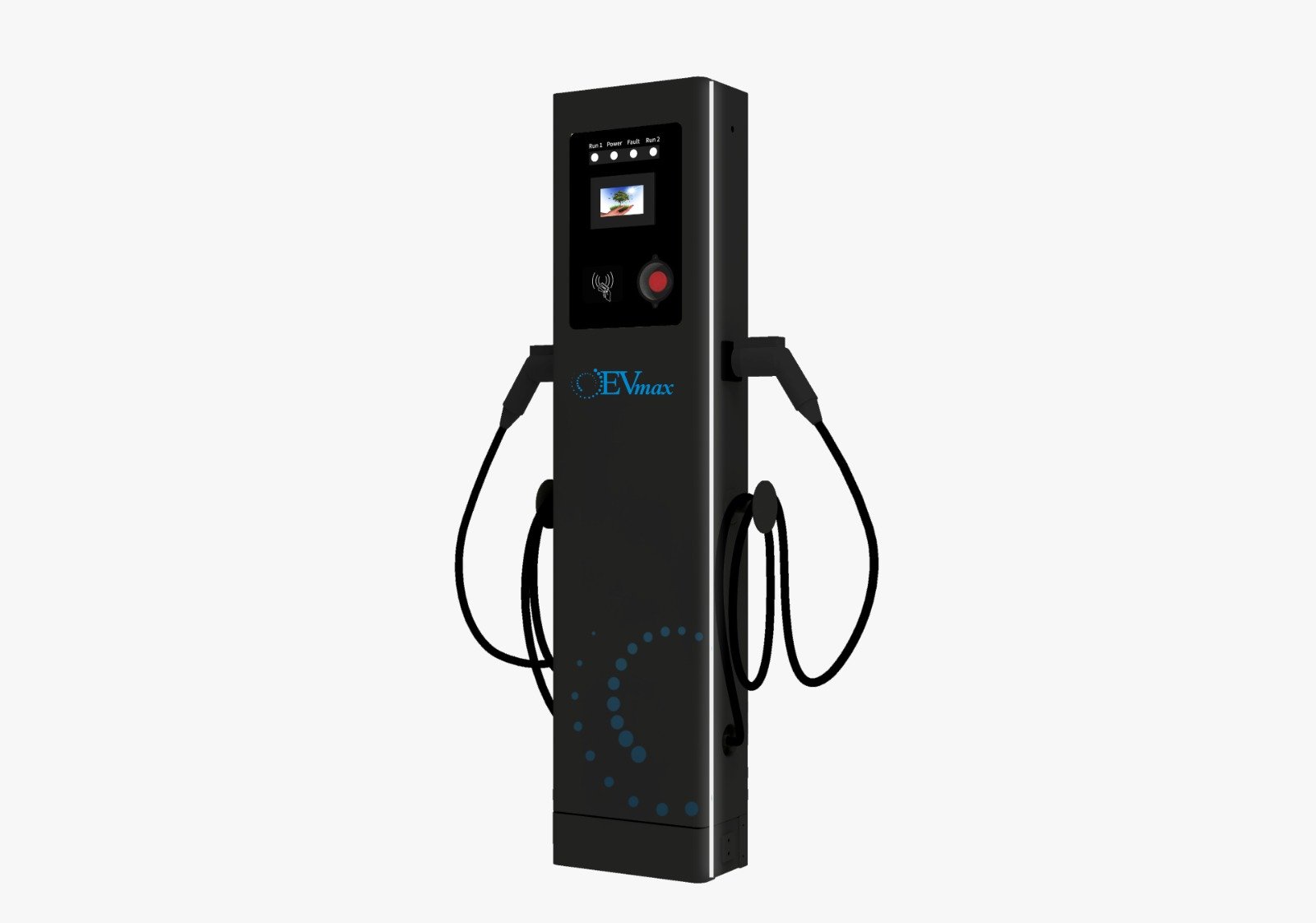

The Galaxy Series 44kW AC Charger is built to deliver professional grade charging for commercial stations, parking lots, and smart buildings.
With its powerful performance, intelligent control, and durable design, it ensures fast, safe, and efficient charging for all types of electric vehicles.
Powered by a three-phase AC system, it supports dual charging outputs, allowing two vehicles to charge simultaneously — maximizing efficiency and uptime.
The 4.3-inch color touch screen provides an intuitive interface for monitoring and operation, while RFID card and password login ensure secure user access.
Engineered for reliability, the unit features full protection against over-current, voltage fluctuations, overheating, and environmental stress.
Its sheet-metal housing and IP54 protection rating make it ideal for both indoor and outdoor installations.
Equipped with Ethernet, 3G, and 4G connectivity, and compliant with OCPP 1.6J, it integrates seamlessly with centralized charging management systems and supports accurate energy metering per vehicle.
Specifications
|
S.NO |
PARAMETERS |
REQIREMENTS |
|
General Requirements |
||
|
1. |
Charger Capacity |
44KW |
|
2. |
Model No. |
ENC-ACB023A |
|
Input Requirements |
||
|
3. |
AC supply system |
Three-Phase, 5 Wire AC system |
|
4. |
Nominal Input Voltage |
AC380V ±15% (ENC) |
|
5. |
Input Frequency |
50 / 60 Hz |
|
Environmental Requirements |
||
|
6. |
Ambient Temperature Range |
-25 to 55°C |
|
7. |
Ambient Humidity |
5 to 95% |
|
8. |
Storage Temperature |
-40 to 70°C |
|
Mechanical Requirements |
||
|
9. |
IP Ratings |
IP 55 |
|
10. |
Cooling |
Natural Cooling |
|
Output Requirements |
||
|
11. |
Number of outputs |
1 |
|
12. |
Type of each output |
AC380V ±15% (ENC) |
|
13. |
Output Current |
Max. 32 Amp |
|
14. |
Output Connector Compatibility |
IEC 62196 2017, IEC 61851 2017, SAE J1772, etc. |
|
15. |
Connector Mounting |
Indoor use |
|
Communication Requirements |
||
|
16. |
Emergency Stop Switch |
Support |
|
17. |
Display |
4.3’’ touch screen (Optional) |
|
18. |
User Authentication |
QR Code / RFID Card / Password (Optional) |
|
19. |
Metering Information |
Consumption Units |
|
User Interface & Display Requirements |
||
|
20. |
Communication between EVSE and Central Server |
OCPP 1.6J protocol |
|
21. |
Metering |
Grid responsive metering as per units’ |
|
22. |
Interface between charger and CMS |
Ethernet / 3G / 4G / WIFI (Optional) |
|
23. |
Safety Parameters |
Over Current, Under Voltage, Residual |
